850nm 0.75dB MTP MPO Fiber Patch Cable LC Connector MTO Cable

Product Categories
Wuhan ETERN Optoelectronics Technology Co.,Ltd.
Contact Now

850nm 0.75dB MTP MPO Fiber Patch Cable LC Connector MTO Cable

Brand Name : Wuhan Etern Optoelectronics

Model Number : MTO/MPO Pre-terminal Sector Fiber

Certification : RoHS

Place of Origin : China

MOQ : 10PCS

Price : Negotiable

Payment Terms : T/T

Features : can choose from MPO and MTP.

Applications : precision communication device, QSFP component, data center wiring,40G/100G&10G/40G connection application.

Operating Temp.(℃) : -20 - +70

Testing Wavelength(nm) : 850nm

Color : Black White Blue Pink Purple Green

Insertion Loss : 0.75dB

Contact Now

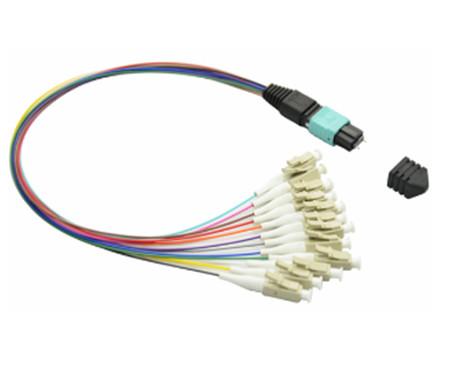

MTO/MPO Pre-terminal Sector Fiber

ETERN MPO-LC/SC pre-terminal sector fiber refers to adopting MPO single 12 core/ 24 core connector on the one side and adopting LC/SC connector on the other side. This product is mainly used on pre-terminal module box, connects the patch cords between the backbone optical fiber or the pre-terminal and the equipment, and modularize it, achieving plug and play. Comparing to traditional welding, greatly improves the convenience and efficiency of the work.

Features

1. An MPO connector with a guide pin is connected to the main cable through the MPO port of the module box, and the LC or SC connector at the other end is connected to the patch cord of the equipment through the LC panel or SC panel of the module box.

2. The customized patch cord length can be matched with the module box for easy disk fiber. MPO panel can be easily upgraded

Performance Specification

MPO Connection

Optical Fiber Type Single Mode Multi-mode
Insertion Loss Typ.(dB) 0.35 0.35
Max.(dB) 0.75 0.75
Low Insertion Loss Typ.(dB) 0.1 0.1
Max.(dB) 0.35 0.35
Return Loss ≥60(APC) ≥200(PC)
≥50(PC)
Male/Female Connector Male Connector: With pin Female connector:Without pin
Durability(dB) ≤0.2 500times
Operation Temp.(℃) -20 - +70
Test Wavelength(nm) 1310 850

Conventional Connectors like LC/SC/FC

Optical Fiber Type Single Mode Multi Mode
Connector Type PC APC PC
Insertion Loss(dB) ≤0.3
Return Loss(dB) ≥50 ≥60 ≥35
Durability(dB) ≤0.2 1000times connecting
Operating Temp.(℃) -20 - +70
Testing Wavelength(nm) 1310 850
