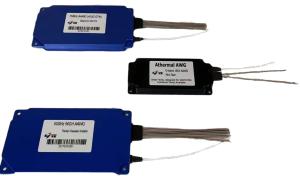

AAWG, 100GHz Spacing, Flat-Top, 48ch, C14-C61 MUX&DEMUX

Description

ETERN Arrayed Waveguide Grating (AWG) is a cost-effective, high-performance DWDM Mux/Demux device operating on 100GHz channel spacing in the C and L band ITU grid, without any electrical power needed.Etern AAWG offers low insertion loss, excellent channel isolation, ease of fiber handling, and long-term reliability in a compact package. The products are Telcordia GR-1221-CORE and GR-1209-CORE qualified, and RoHS complaint.

Optical Specification

Parameters Unit Value
Channel Number 48
Channel Spacing GHz 100
Center Wavelength nm 1528.773 ~ 1566.314
Channel Frequency THz 191.4 ~196.1
Reference Passband nm ±0.1
Insertion Loss dB ≤5.6
Insertion Loss Uniformity dB ≤1.5
Passband Ripple dB ≤0.5
Bandwidth @3dB GHz 67
Isolation Adjacent Channels dB ≥25
Non-adjacent Channels ≥30
Total crosstalk dB ≥21
PDL dB ≤0.5
PMD ps ≤0.5
Return Loss dB ≥40
Chromatic Dispersion ps/nm ±20
Operating Temperature ℃ -5 to +65
Storage Temperature ℃ -40 to +85
Directivity dB ≥40
Pigtail and connector type/length
Parameter Specifications Unit
Fiber Type SMF-28e With 900um Loose tube fiber
Fiber Length Common Fiber 500±50 mm
Ribbon Fiber 500±50 mm
Fan-out 500±50 mm
Optical Adaptors (All port) LC/UPC

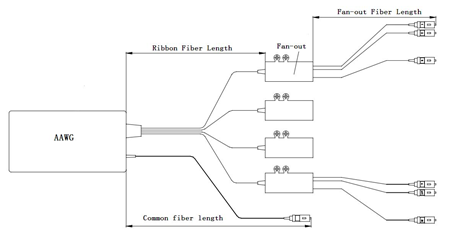

Mechanical Drawings (Unit: mm )
AAWG 100GHz Spacing Flat Top 48ch C14-C61 MUX DEMUX
Fiber Length
AAWG 100GHz Spacing Flat Top 48ch C14-C61 MUX DEMUX
Fan-out
